Lazer Commercial

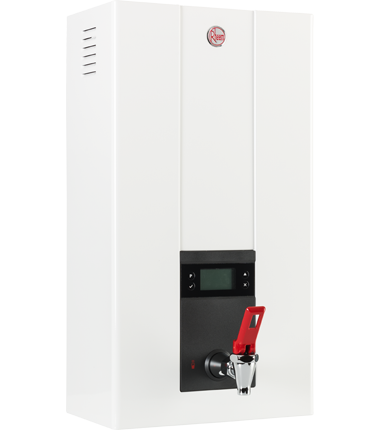

Lazer Commercial 70207W-NZ
Lazer Commercial 70207W-NZ
Product Specifications
Finish
Powder Coat White
Approx. Storage Capacity
7.5 Litres
Dimensions
336W x 192D x 515H mm HxW
Country of Manufacture
New Zealand
Recovery - p/hr
135 Cups (170ml)
Delivery - Initial
8.5 Litres
Recovery - p/hr
23 Litres
Delivery - Initial
50 Cups (170ml)
Electrical Connection
Supplied with 10 amp 3 pin plug and flex V AC/ Hz
Element Rating
2.4 kW
Water Supply Pressure (Min)
50 kPa
Water Supply Pressure (Max)
1000 kPa
Weight Empty/Full Approx
9/19 kg
Plumbing Connections
G 1/2" BSP M
Warranty: Parts (Parts/Labour)
2 Year
Warranty: Cylinder/Tank (Labour)
2 Year
Warranty: Cylinder/Tank (Replacement)
5 Year
Technical Documents
Lazer Commercial Spare Parts
524 KB
524 KB
Lazer Commercial Service Manual
2.1 MB
2.1 MB
