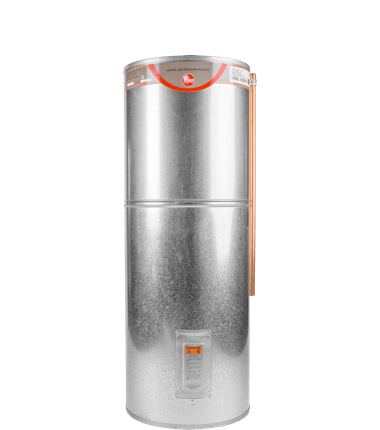

Low Pressure Copper Wetback
WETBACK 16522515
WETBACK 16522515
Product Specifications
Type
Low Pressure
Finish
Galvanised
Approx. Storage Capacity
225 Litres
Thermostat Setting Max
70 °C
Dimensions
1520 x 560mm HxW
# People (Moderate Climate)
2-4
Thermostat Setting Min
60 °C
# People (Cold Climate)
2-3
Installation Location
Indoor
Country of Manufacture
New Zealand
Element Type
Copper (T/P) Screw-In
Element Rating
3.0 kW
Electrical Connection
240 / 50 V AC/ Hz
Water Connection Inlet & Outlet
RP 1/25 mm
Wetback Connections
Bottom
Connection
BCRL
Weight Empty Approx
30 kg
Max Working Pressure
76 kPa
Domestic Warranty: Parts (Parts/Labour)
1 Year
Domestic Warranty: Cylinder/Tank (Labour)
1 Year
Domestic Warranty: Cylinder/Tank (Replacement)
5 Year
Non-Domestic Warranty: Parts (Parts/Labour)
1 Year
Non-Domestic Warranty: Cylinder/Tank (Labour)
1 Year
Non-Domestic Warranty: Cylinder/Tank (Replacement)
1 Year
Technical Documents
LP Wetback Spare Parts Guide
288 KB
288 KB
