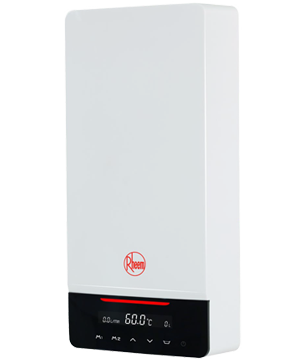

Eclipse Commercial Electric Continuous Flow

Eclipse Commercial Electric Continuous Flow

Precise modulation of heating elements combined with temperature and flow sensors delivers hot water faster than many other comparable water heaters.

Quick access to pre-set child safe or bath temperatures with touch screen display. Desired temperatures for memory modes can be adjusted via display options.

Both 18kW and 27kW models are available in 50°C and 60°C maximum output temperatures to suit site requirements.

These models can be installed without any further tempering in accordance with AS/NZS 3500.4. Includes trade adjustability for desired temperature at the tap in accordance with NZBC G12.

Key Features:

  • Low activation flow rate to suit low flow tapware and high ambient temperatures
  • Flexible installation options with inlet and outlet fittings and electrical connection concealed through the wall or from the bottom of the water heater
  • Display of water consumption and flow rate on touch screen
  • Automatic sleep mode for energy savings
  • Quick access to pre-set child safe or bath temperatures with touch screen display.
Download brochure
Eclipse Commercial Electric Continuous Flow
Model Rated Power (kW) Temperature Control Range (°C) Dimensions (HxW) Installation Location
CFEWH 6C318500A 18 30 – 55 470Hx 226Wx95D mm Indoor
CFEWH 6C318600A 18 30 – 60 470Hx 226Wx95D mm Indoor
CFEWH 6C327500A 27 30 – 55 470Hx 226Wx95D mm Indoor
CFEWH 6C327600A 27 30 – 60 470Hx 226Wx95D mm Indoor
